Harga Mesin Es Kristal | Mesin Pembuat Es Tube | Tube Ice Machine

TUBE ICE MACHINE
TUBE ICE MACHINE / MESIN ES KRISTAL

Mesin es kristal atau ice tube machine adalah mesin untuk membuat es batu berbentuk tabung sperti kristal. Aplikasi mesin ini biasanya digunakan untuk pabrik es batu dengan cara dijual dalam kemasan kantong.

Fitur Mesin Es Kristal

  • Ukuran Es Kristal: Φ26, Φ28, Φ30mm, Φ34mm dengan panjang berkisar antara 27 ~ 50mm.
  • Evaporator: bejana tabung, bagian atas dan bawah dilas dengan penyambungan berkualitas.
  • Menggunakan program PLC Logic Controller
  • Rotating Driver Ice Cutter: 304 stainless steel Ice Cutter Blade dijalankan menggunakan gear motor kecepatan sedang.
  • Penggunaan mesin tidak memerlukan pekerja terampil karena pengoperasian mesin menggunakan teknologi canggih dengan perawatan minimal
  • Tabung es tebal dan transparan, dengan waktu penyimpanan lebih lama, tidak mudah mencair dan ventilasi yang baik.

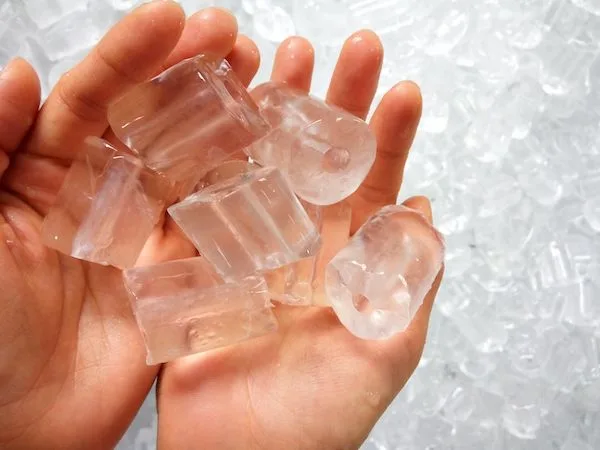

Es Kristal Ice Tube

Bisnis Es Kristal

Spesifikasi Peralatan Mesin Es Tube

Suhu Inlet Air Bahan Baku : Bisa Disesuaikan
Suhu Evaporasi : -10 s/d -15° Celcius
Suhu Kondensasi : 40°Celcius
Refrigerant : R404a
Cycle Time Proses Es Tube : 22 – 27 menit (Disesuaikan dengan diameter hole es tube)
Operational Mesin : Automatic PLC Control
Diameter Es Tube : 20 – 40 mm (bisa disesuaikan dengan permintaan)
Diamater Hole Es Tube : 5 – 10 mm (bisa disesuaikan dengan permintaan)
Power Tegangan Listrik : 220 Volt 1 Phase & 380 Volt 3 Phase

Mesin Es Kristal Ice Tube Machine TIM-500

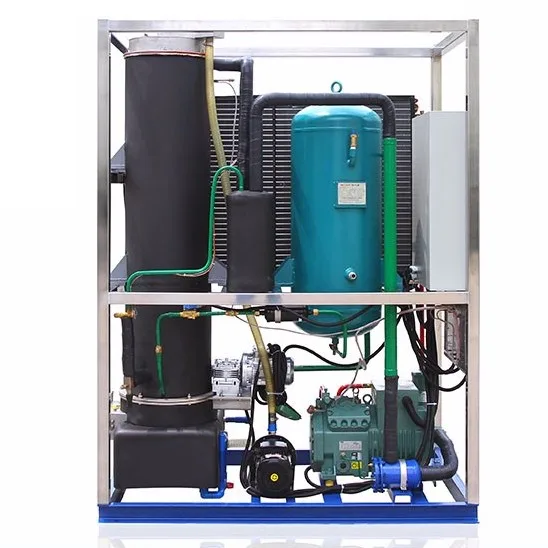

Mesin Es Kristal 2 Ton

Tipe Mesin : TIM-500
Voltase : 220/380 Volt
Frekuensi : 50/60 Hz
Refrigerant : R 404a
Power Kompressor : 2 HP
Kapasitas Produksi : 500 Kg / 24 Jam
Kompressor Brand : Bitzer
Condensor Brand : MPC / KUHL
Pendingin Kondensor : Udara
Motor Cutter : 300 Watt
Motor Pendingin : 300 Watt
Motor Sirkulasi : 300 Watt
Berat Mesin : 800 Kg
Dimensi Produk : 1300 x 1000 x 1900 mm
Harga Produk : Hubungi Kami

Mesin Es Kristal Ice Tube Machine TIM-1000

Mesin Es Kristal 2 Ton

Tipe Mesin : TIM-1000
Voltase : 220/380 Volt
Frekuensi : 50/60 Hz
Refrigerant : R 404a
Power Kompressor : 4 HP
Kapasitas Produksi : 1000 Kg / 24 Jam
Kompressor Brand : Bitzer
Condensor Brand : MPC / KUHL
Pendingin Kondensor : Udara
Motor Cutter : 370 Watt
Motor Pendingin : 370 Watt
Motor Sirkulasi : 370 Watt
Berat Mesin : 900 Kg
Dimensi Produk : 1600 x 1100 x 2300 mm
Harga Produk : Hubungi Kami

Mesin Es Kristal Ice Tube Machine TIM-2000

Mesin Es Kristal 2 Ton

Tipe Mesin : TIM-2000
Voltase : 220/380 Volt
Frekuensi : 50/60 Hz
Refrigerant : R 404a
Power Kompressor : 9 HP
Kapasitas Produksi : 2000 Kg / 24 Jam
Kompressor Brand : Bitzer
Condensor Brand : MPC / KUHL
Pendingin Kondensor : Udara
Motor Cutter : 370 Watt
Motor Pendingin : 900 Watt
Motor Sirkulasi : 750 Watt
Berat Mesin : 1400 Kg
Dimensi Produk : 1650 x 1100 x 2450 mm
Harga Produk : Hubungi Kami

Mesin Es Kristal Ice Tube Machine TIM-3000

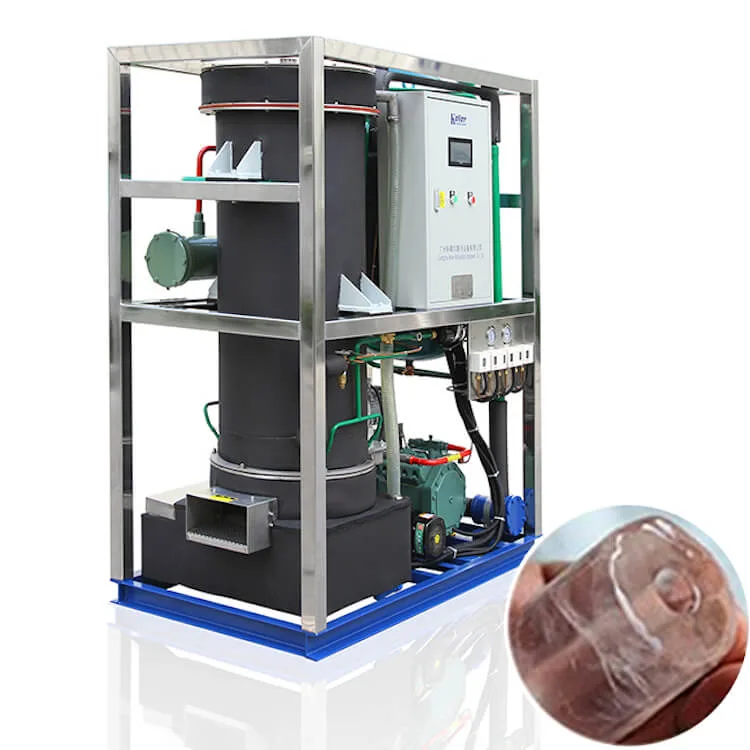

Tube Ice Machine TV30 - Mesin Es Kristal 3 Ton

Tipe Mesin : TIM-3000
Voltase : 220/380 Volt
Frekuensi : 50/60 Hz
Refrigerant : R 404a
Power Kompressor : 14 HP
Kapasitas Produksi : 3000 Kg / 24 Jam
Kompressor Brand : Bitzer
Condensor Brand : MPC / KUHL
Pendingin Kondensor : Udara
Motor Cutter : 550 Watt
Motor Pendingin : 1600 Watt
Motor Sirkulasi : 1100 Watt
Berat Mesin : 1750 Kg
Dimensi Produk : 1700 x 1400 x 2450 mm
Harga Produk : Hubungi Kami

Mesin Es Kristal Ice Tube Machine TIM-5000

Tube Ice Machine TV30 - Mesin Es Kristal 3 Ton

Tipe Mesin : TIM-5000
Voltase : 220/380 Volt
Frekuensi : 50/60 Hz
Refrigerant : R 404a
Power Kompressor : 23 HP
Kapasitas Produksi : 5000 Kg / 24 Jam
Kompressor Brand : Bitzer
Condensor Brand : MPC / KUHL
Pendingin Kondensor : Udara
Motor Cutter : 1100 Watt
Motor Pendingin : 2200 Watt
Motor Sirkulasi : 1500 Watt
Berat Mesin : 2100 Kg
Dimensi Produk : 1800 x 1500 x 2450 mm
Harga Produk : Hubungi Kami

Mesin Es Kristal Ice Tube Machine TIM-10000

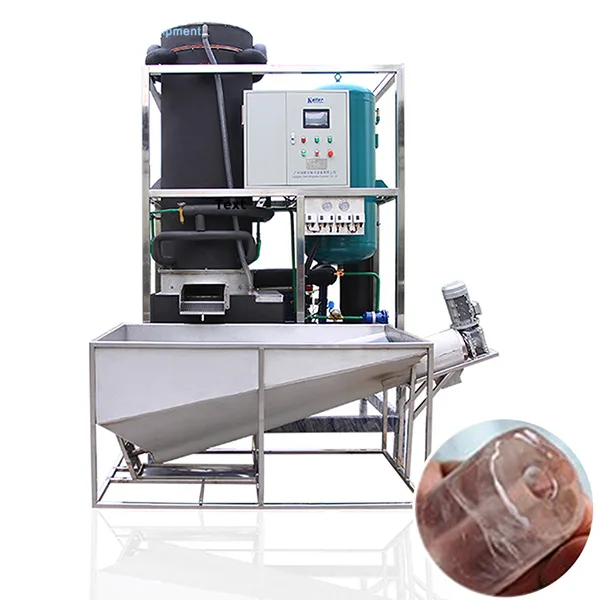

Mesin Es Kristal 10 Ton

Tipe Mesin : TIM-10000
Voltase : 220/380 Volt
Frekuensi : 50/60 Hz
Refrigerant : R 404a
Power Kompressor : 50 HP
Kapasitas Produksi : 10.000 Kg / 24 Jam
Kompressor Brand : Bitzer
Condensor Brand : MPC / KUHL
Pendingin Kondensor : Udara
Motor Cutter : 1100 Watt
Motor Pendingin : 2200 Watt
Motor Sirkulasi : 1500 Watt
Berat Mesin : 3200 Kg
Dimensi Produk : 2200 x 1900 x 2500 mm
Harga Produk : Hubungi Kami

Fitur Mesin Es Kristal / Tube Ice Machine

Fitur Mesin Es Kristal

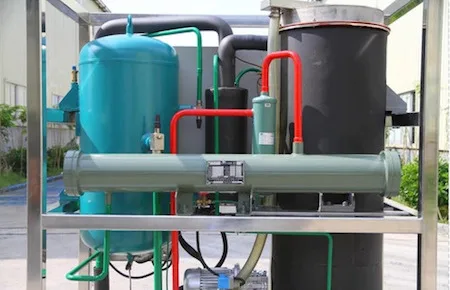

Tube Ice Machine Unit

Fitur Mesin Es Kristal

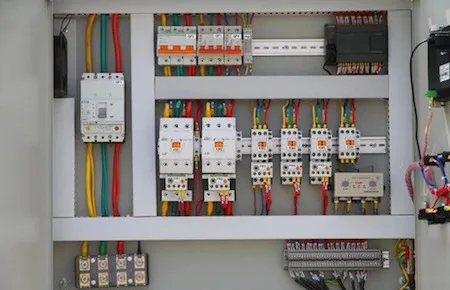

LG Electrical Component

Fitur Mesin Es Kristal

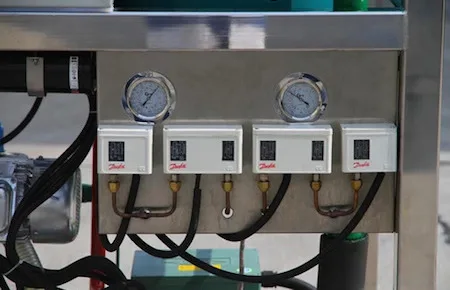

Danfoss Compressor Pressure Protector

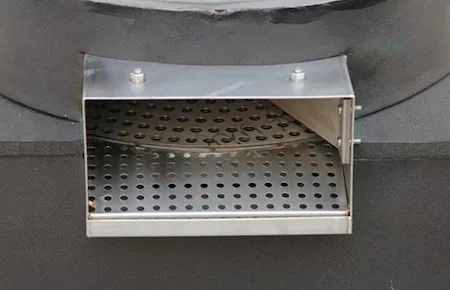

Completely Stainless Steel 304 Ice Outlet
